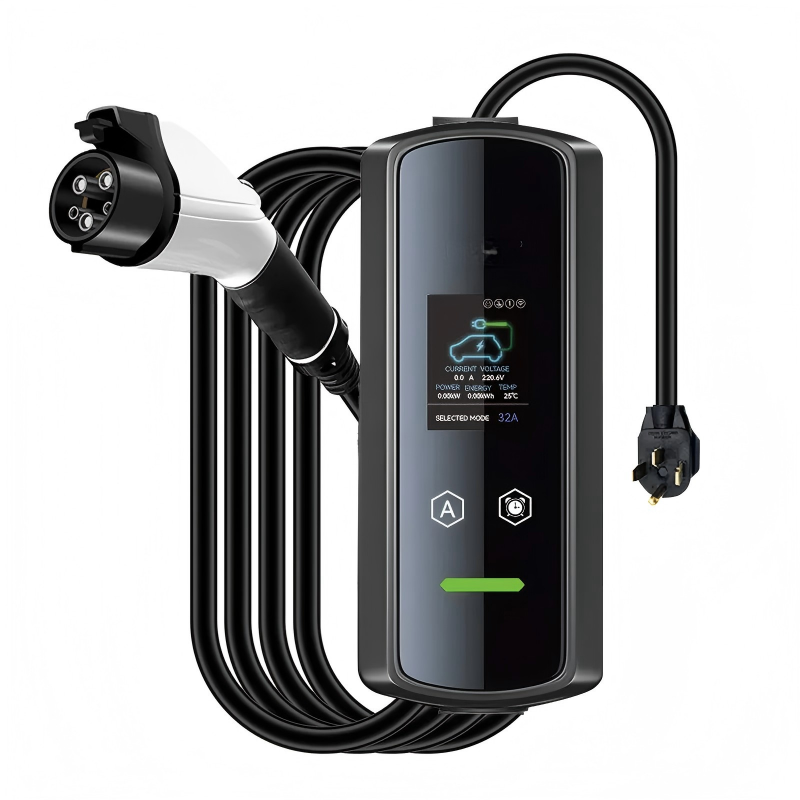

PRODUCT DESCRIPTION
Multiple security protections
Multiple safety protection designs such as overcurrent protection, overvoltage protection, and overheating protection are adopted to ensure the safety and reliability of the charging process.

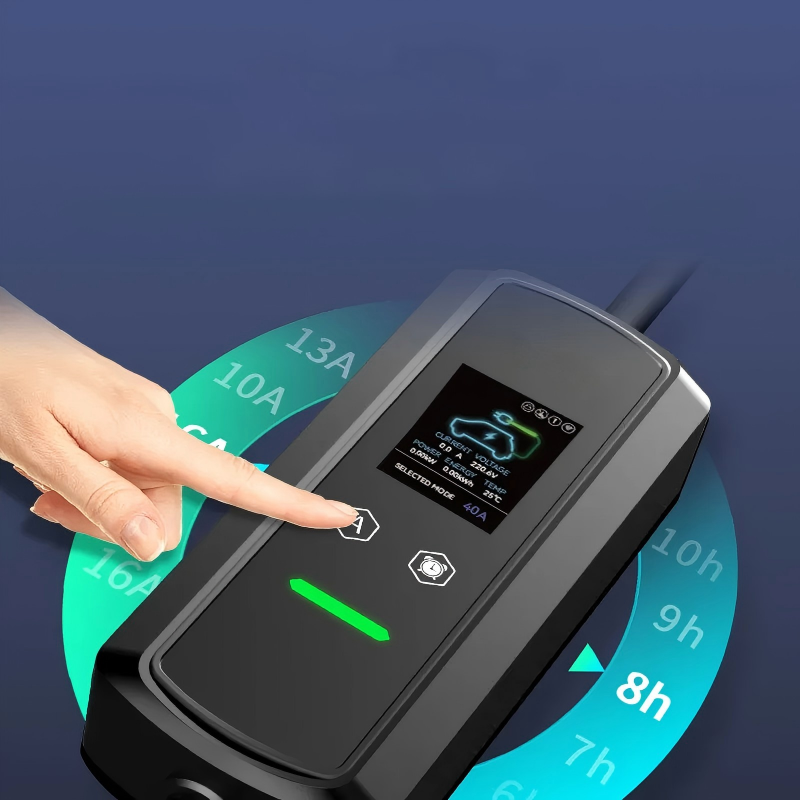

Intelligent adjustment function
It supports intelligent adjustment of current, voltage and power, and can be automatically adjusted according to different charging environments and the needs of electric vehicles to achieve a more efficient charging effect.
High-quality materials
It adopts oxygen-free pure copper cable, which has the characteristics of heat insulation and high temperature resistance. The gun head is a TPU one-piece glue-coated model, which feels light, safe and reliable.
Technical Features
| Technical Features-P04 | |||
| size | (241*98*54.5) mm | ||
| Net Weight | 2.07kg | ||
| Standard | EN IEC 61851-1:2019 | SAE J1772 | GB/T |
| Input/Output Voltage | 100-240/400VAC50/60Hz 1/3Phase | 100-240VAC50/60Hz 1Phase | 220/380VAC±20%50/60Hz 1/3Phase |
| Output Current | 8A-32A | 8A-48A | 8A-32A |
| Max Power | 3.5KW-11.5KW | 3kW-11KW | 3kW-11KW |
| Cable Length | 5m or more lengths are Customizable | ||
| Standby Power | <1.5W | ||
| Communication | Wi-Fi 802.11b/g/n@2.4GHz | ||
| User Interface | LED(RGB)/LCD(2.4inch)/Button | ||
| Protool | OCPP1.6J(option) | ||
| Charging Interface | IEC 62196 Type 2/SAE J1772 Type 1/GB/GB/T 20234.2 | ||
| IP Degree | IP65 | ||
| Operating Temperature | -25-+50 ℃ | ||
| Humidity | Max.95%(non-regulating) | ||
| Protection | Overvoltage Protection,Undervoltage Protection,Overcurrent Protection,Residual Current Protection,Overtemperature Protection,CP Protection, Flame retardant protection. | ||
| Note | Charging Interface can be changed according to customer needs | ||
FAQs
A: Small orders usually ship within 5 working days. However, for OEM orders, you’ll need to get a quote from us for the exact shipping time.
A: We welcome all orders with no MOQ limitations. Our services include:
• Wholesale Pricing
• Drop-shipping Fulfillment
A: We offer lifetime technical support. Our engineers are on standby, providing around-the-clock assistance.
A:Yes, samples are available. We always advise confirming a sample prior to production—it’s an essential step to confirm all details are correct and to mitigate risks.
