PRODUCT DESCRIPTION

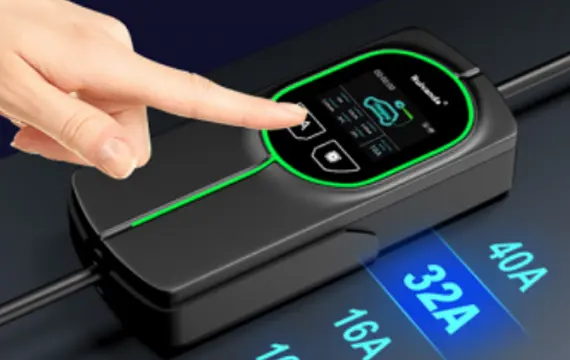

Intelligent adjustment function
It supports intelligent adjustment of current, voltage and power, and can be automatically adjusted according to different charging environments and the needs of electric vehicles to achieve a more efficient charging effect.
Multiple security protections
Multiple safety protection designs such as overcurrent protection, overvoltage protection, and overheating protection are adopted to ensure the safety and reliability of the charging process.
High-quality materials
It adopts oxygen-free pure copper cable, which has the characteristics of heat insulation and high temperature resistance. The gun head is a TPU one-piece glue-coated model, which feels light, safe and reliable.
Technical Features
| Technical Features-P03 | |||
| size | (230*100*57)mm | ||
| Net Weight | 2.18kg | ||
| Standard | EN IEC 61851-1:2019 | SAE J1772 | GB/T |
| Input/Output Voltage | 100~240/400VAC50/60 Hz 1/3Phase | 100~240 VAC50/60 Hz 1Phase | 220/380 VAC±20%50/60 Hz 1/3 Phase |
| Output Current | 8A-32A | 8A-48A | 8A-32A |
| Max Power | 3.5KW-11.5KW | 3kW-11KW | 3KW-11KW |
| Cable Length | 5m or more lengths are Customizable | ||
| Standby Power | <1.5W | ||
| Communication | Wi-Fi 802.11b/g/n@2.4 GHz | ||
| User Interface | LED(RGB)/LCD(2.4inch)/Button | ||
| Protool | OCPP1.6J(option) | ||
| Charging Interface | IEC 62196 Type 2/SAE J1772 Type 1/GB/GB/T 20234.2 | ||
| IP Degree | IP65 | ||
| Operating Temperature | -25~+50℃ | ||
| Humidity | Max.95%(non-regulating) | ||
| Protection | Overvoltage Protection, Undervoltage Protection,Overcurrent Protection, Residual Current Protection,Overtemperature Protection,CP Protection, Flame retardant protection. | ||
| Note | Charging Interface can be changed according to customer needs | ||
