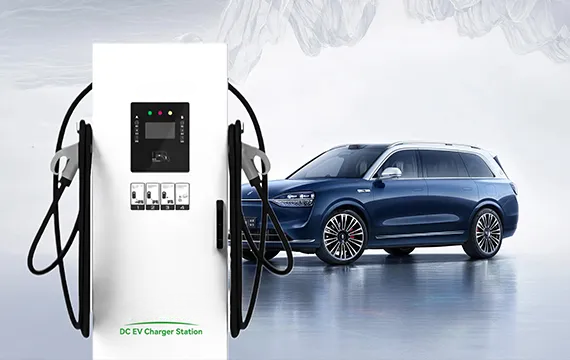

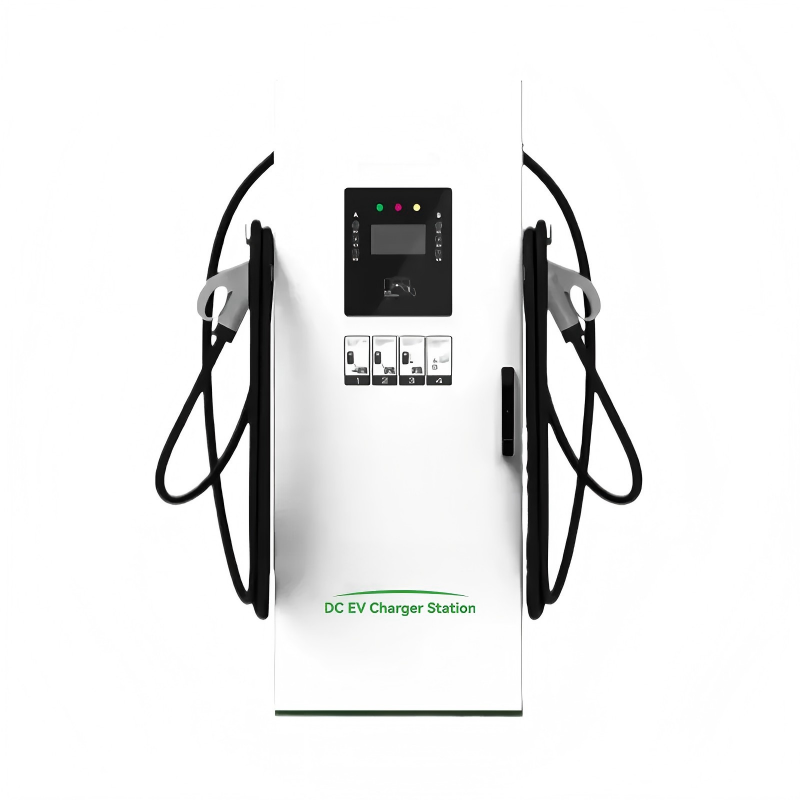

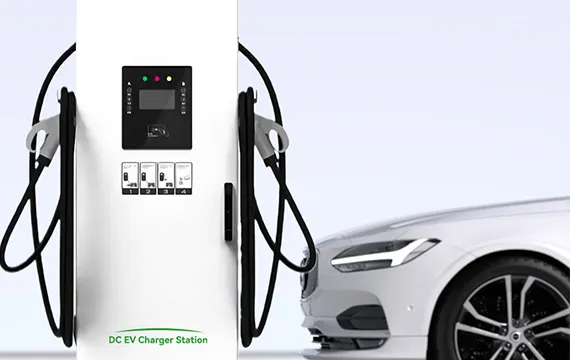

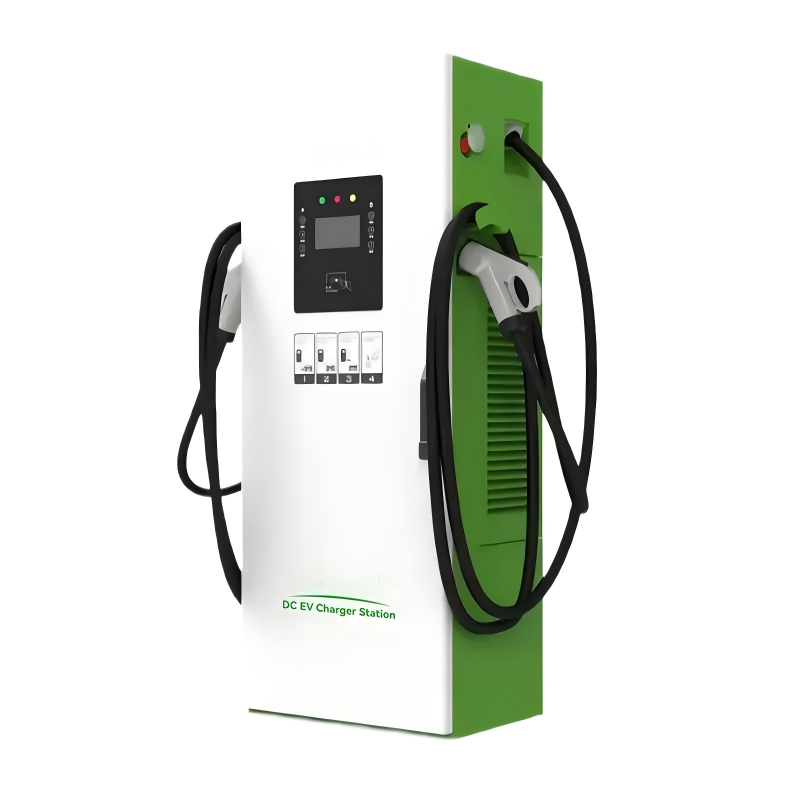

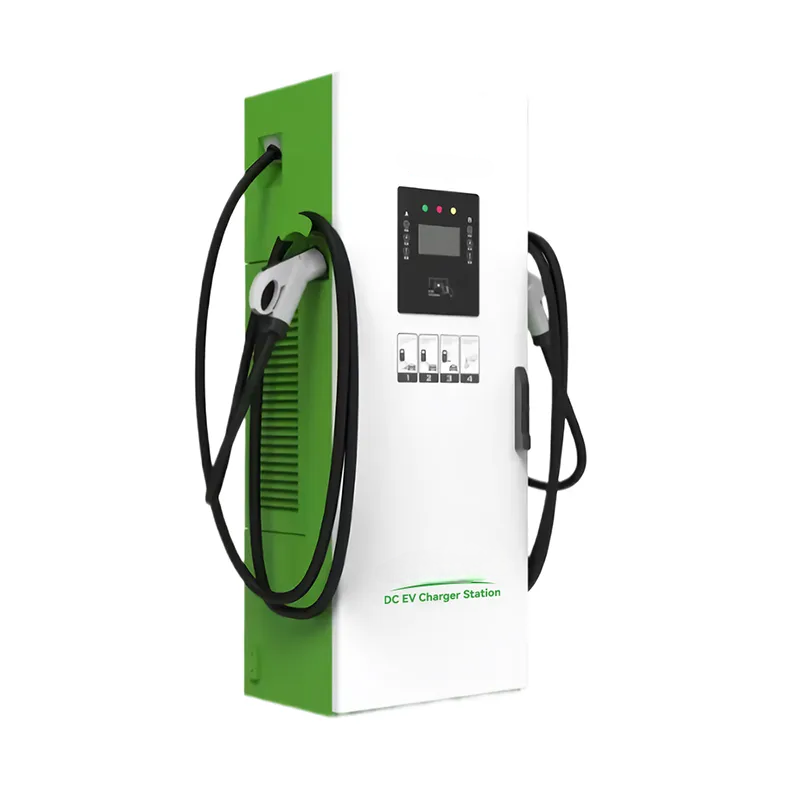

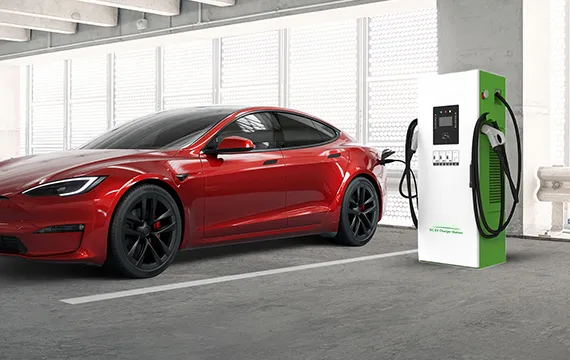

DC EV Charger Station
- 80-120kW
- The product provides a variety of communication interfaces
- The product has a self-inspection function
PRODUCT DESCRIPTION
Intelligent adjustment function
It supports intelligent adjustment of current, voltage and power, and can be automatically adjusted according to different charging environments and the needs of electric vehicles to achieve a more efficient charging effect.
Multiple security protections
Multiple safety protection designs such as overcurrent protection, overvoltage protection, and overheating protection are adopted to ensure the safety and reliability of the charging process.
Diverse charging modes
It supports four charging modes: charging by time, charging by power, charging by amount, and automatic charging to meet the different charging needs of customers; accurate metering and billing.
Technical Features
| Model | RVD-120KW01 |
| Size | 700*500*1800(mm) |
| Charger Weight | 150kg |
| Input/Output Voltage | 300V*15%,SO*1Hz 3Phase |
| Output Current | 120A |
| Max Power | S120kW |
| Cable Length | Sm or more lengths are Customizable |
| Standby Power | <30W*2 |
| Impact Resistance | 12kV |
| Power Frequencywithstand voltage | 3.5kV |
| Screen | 7inch |
| Standards | GB/T 18487.1-2015 |
| Charging Interface | CB/T 20234.1-2015/ 20234.3-2015 |
| IP Degree | IP54 |
| Operating Temperature | -20→+50 ℃ |
| Humidity | Max.95%(non-reg ulating) |
| Protection | Overvoltage Protection, Undervoltage Protection, Overcurrent Protection, Residual Current Protection, Overtemperature Protection, CP Protection, Flame retardant protection. |
| Note | Charging Interface can be changed according to customer needs |
FAQs
A: Small orders usually ship within 5 working days. However, for OEM orders, you’ll need to get a quote from us for the exact shipping time.
A: We welcome all orders with no MOQ limitations. Our services include:
• Wholesale Pricing
• Drop-shipping Fulfillment
A: We offer lifetime technical support. Our engineers are on standby, providing around-the-clock assistance.
A:Yes, samples are available. We always advise confirming a sample prior to production—it’s an essential step to confirm all details are correct and to mitigate risks.
