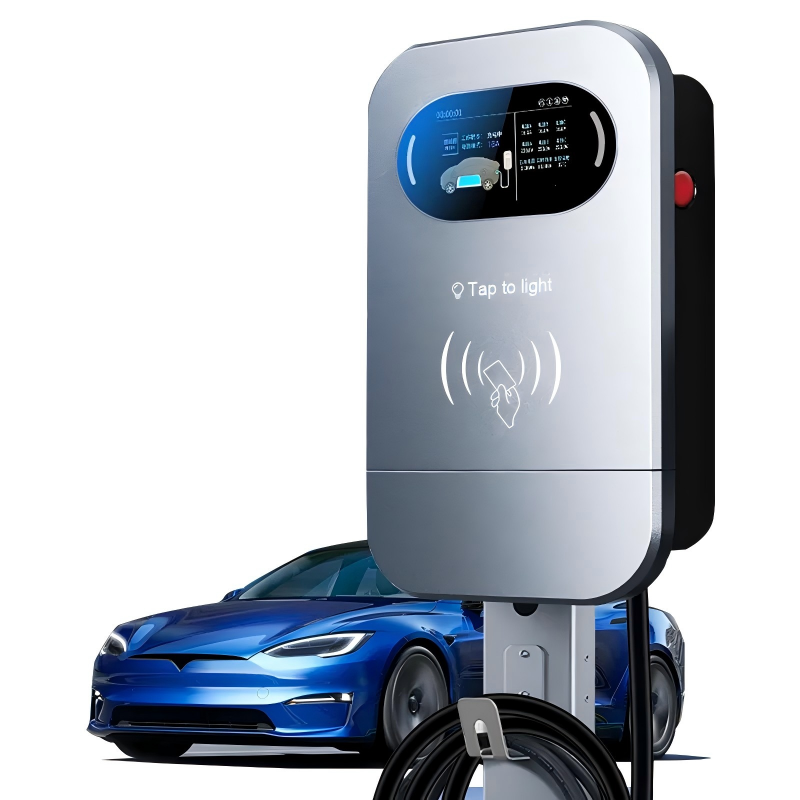

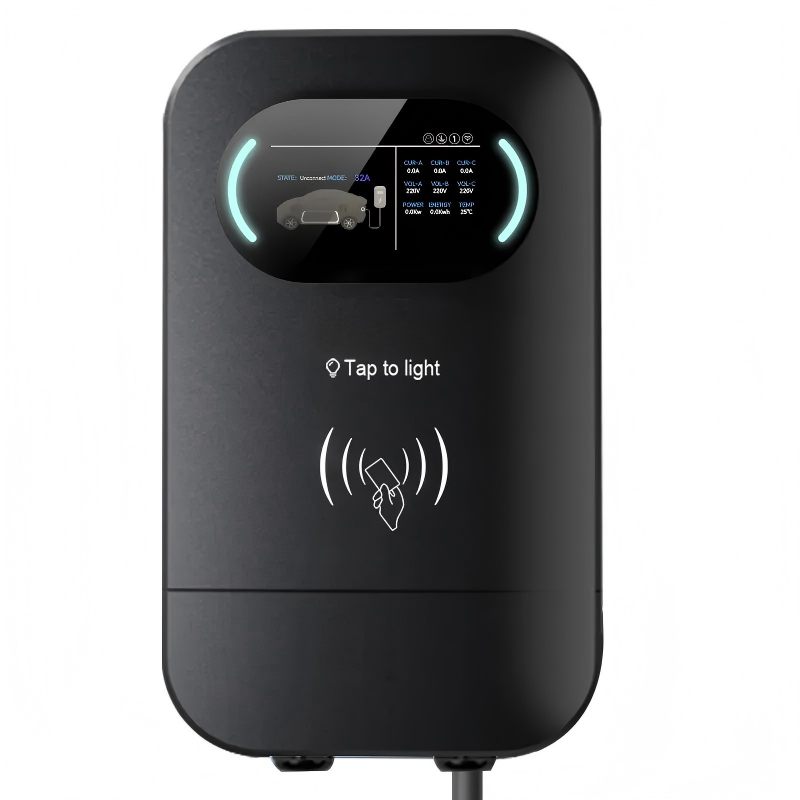

AC EV Wallbox 01

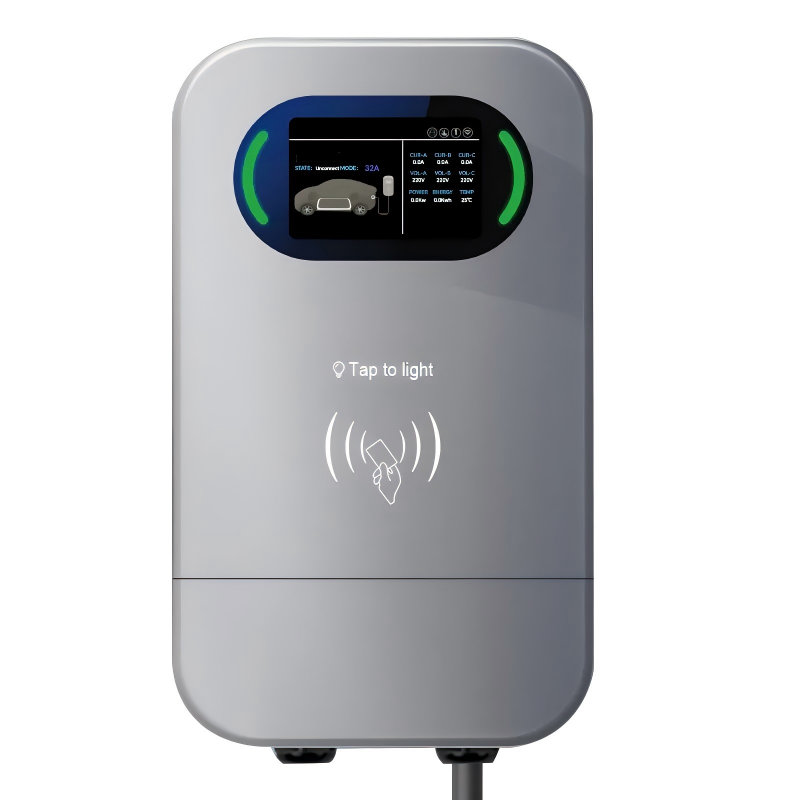

- With 5 inch display, can display the charging status online
- Support card charging, and support plug and charge function, charge card function for identity authentication
- The charging station will not damage the car battery
- Free to set charging time, with peak and valley electricity prices, save electricity and environmental protection
PRODUCT DESCRIPTION

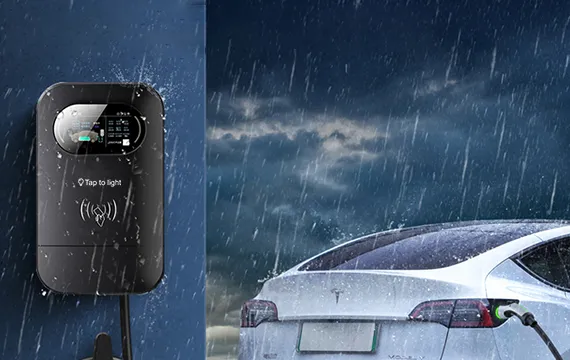

Waterproof
Waterproof level lP65
You can use the item outdoors and do not have to worry even on rainy days. The shell is made of PC fireproof plastic, Light but robust, Soit will not be easily damaged.
Temperature Control Protection
Automatic power cut over 80℃
Ruivanda always puts charging safety first, and monitors the charging temperature in real time.
Different Way to Charge

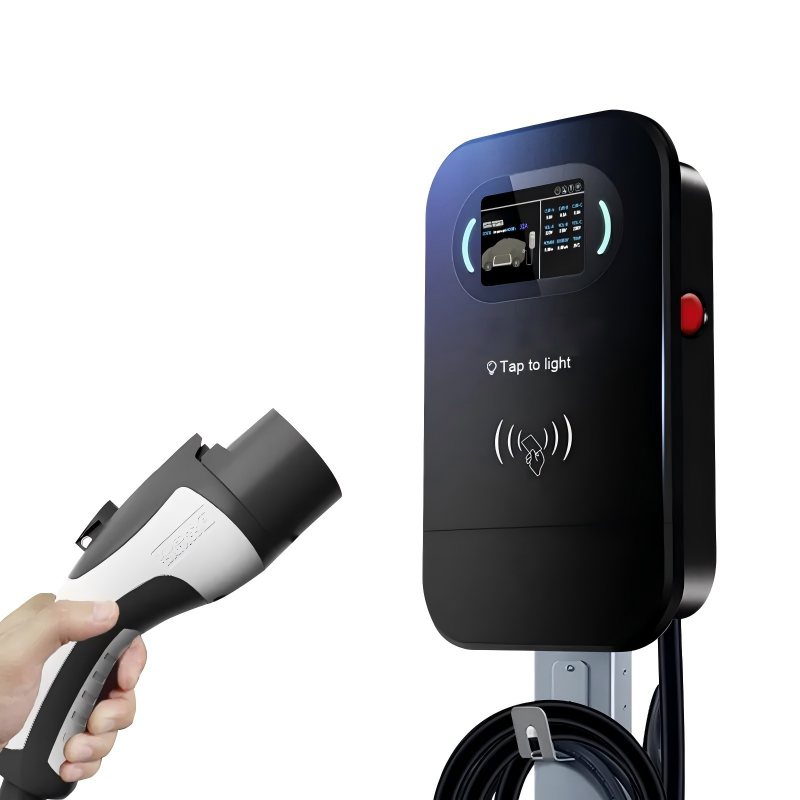

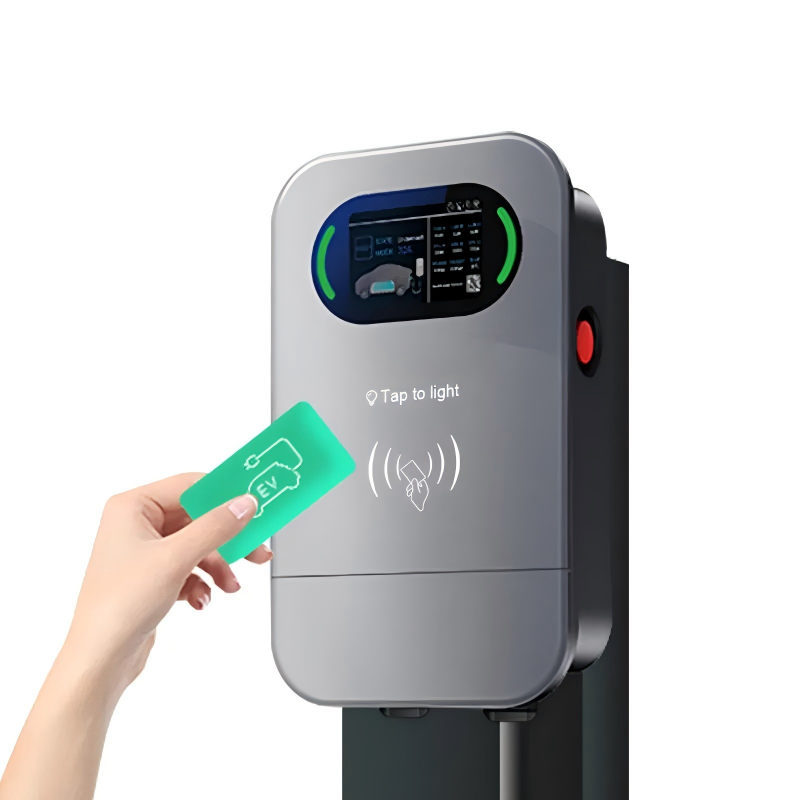

Support use the RFID card to scan charging, support use charging connector , Webpage Control, and remote control.
Technical Features
| Model | |
| PEV-7KW08 | |
| Electrical Parameters | |
| Input Voltage | 220VAC±20%,50/60Hz,1-phase |
| Pre-charge Output Current | 32A MAX |
| Standby Power Consumption | <5W |
| RCD | Type A |
| Implementation Standard | GB/T 18487.1-2015 |
| Charging Interface | GB/T 20234.1-2023 |
| Human-Machine Interface | _ED |
| Communication Method | BLE 5.4 High-Performance 2.4G |
| Built-in Circuit Breaker | 2P 63A Miniature Circuit Breaker (Down-in and Up-out Version) |
| Maximum Allowable Current of Built-in Socket | <8A (Automatic Power-off Without Current for 1 Minute) |
| Startup Method | Card Swiping/APP/Plug and Charge/Bluetooth Touchless Startup |
| Appearance Parameters | |
| Dimensions | 310*190*104mm(L*W*H) |
| Shell Material | PC Material Body |
| Installation Method | Wall-mounted/Column-mounted |
| Cable Length | 4m (Including Connect Head) |
| Protection Level | IP65 |
| Operating Temperature | -30°℃~+50℃ |
| Operating Humidity | <95%RH |
| Operating Altitude | <2000m |
| Cooling Method | Natural Cooling |
| Safety Protection | |
| Overvoltage Protection | Stop charging if the voltage remains above 270±3V for 5 seconds |
| Undervoltage Protection | Stop charging if the voltage remains below 85±3V for 5 seconds |
| Over-temperature Detection | Reduce current to 6A when the enclosure temperature is |
| above 75℃, resume when it falls to below 70C, and stop charging if it is above 85℃ | |
| Overcurrent Detection | Stop charging if the current exceeds 35.2A for 5seconds |

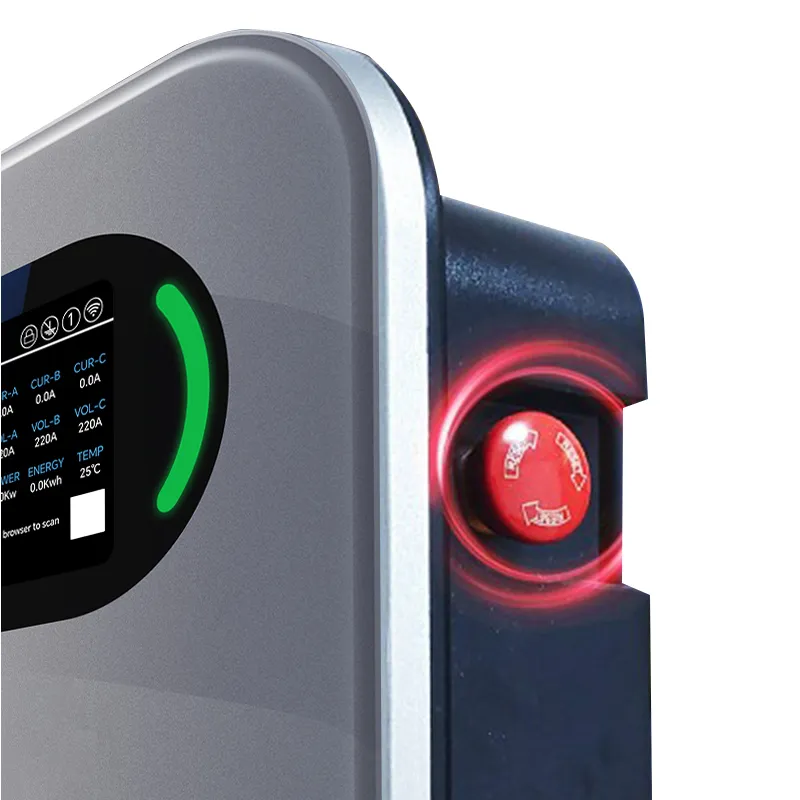

| Emergency Stop Protection | |
| Leakage Protection | |
| Grounding Detection | |
| CP Abnormality Detection | |
